ATLAS series trailers are braked trailers with a total weight up to 3500 kg and with three-side tilting body, 350 mm folding and removable aluminium side boards.
Loading platform dimensions 3320x1700x350 mm.
Completely-welded lower and upper frame. V-drawbar, 13" or 14" wheels, 13-pole electrical installation and plug, 15 mm thick waterproof plywood floor can be covered with Zn abrasion-resistant metal sheet. Manual or electric hydraulic, opening or swinging rear board. 8 pcs U-shaped anchoring eyes in side profiles.
As standard, ATLAS trailers are equipped with jockey wheel with holder, wheel scotch blocks and AGADOS SMART rear LED lighting.
ALU ramps lodgement in the lower frame as standard.
Three-side tilting body of the trailer.
Galerie
 |  |  |
 |  | |
 |
VARIANTS, MODIFICATIONS, ACCESSORIES
ATLAS series trailers can be equipped with useful accessories or various modifications can be selected

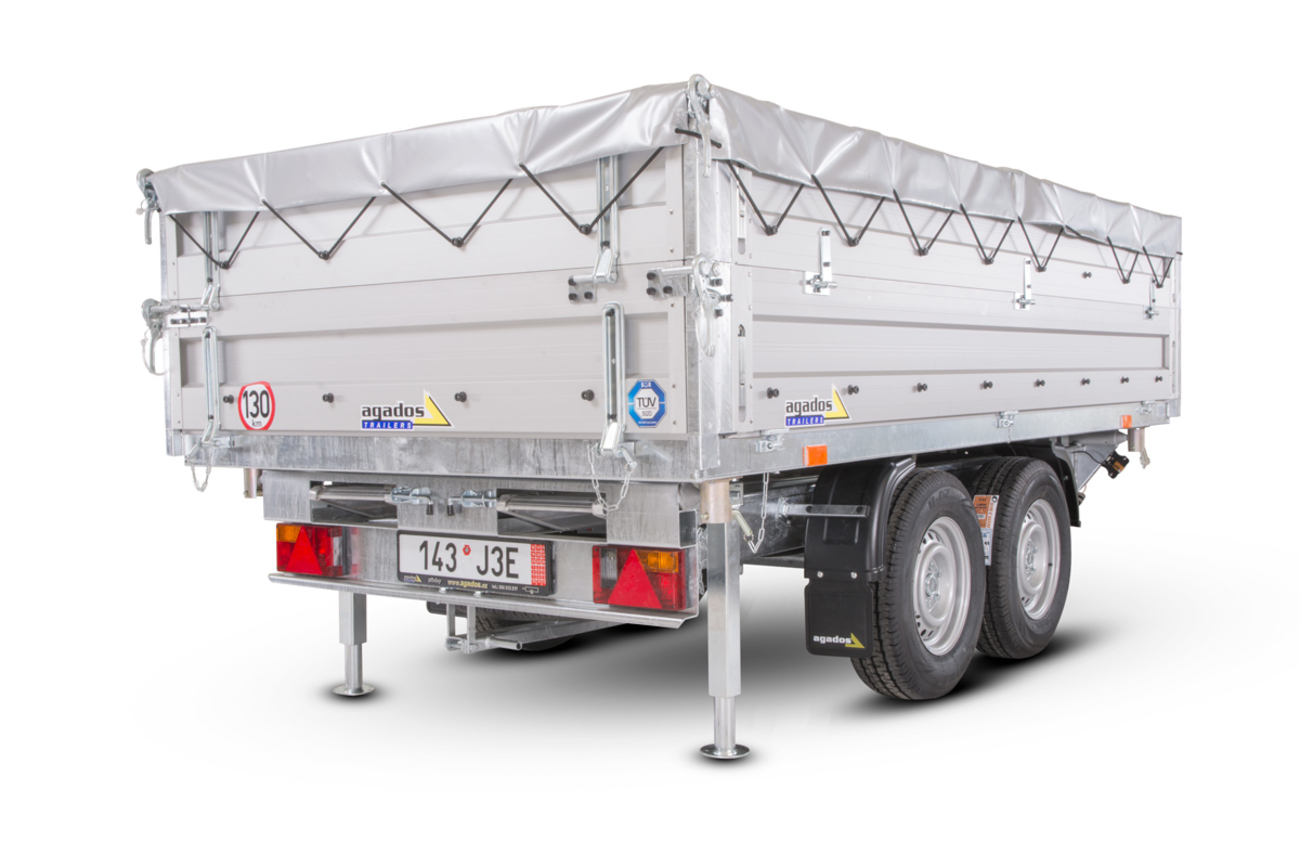

■ rear supporting legs tilting
■ side board extension
■ coupling lock
■ flat canvas or canvas with construction
■ Zn sheet metal on the floor
■ spare wheel
■ spare wheel holder
■ axle dampers (shock absorbers)
■ opening front board
■ electric hydraulic control
■ small emergency hand pump for electric hydraulic
■ coupling with a stabilizer
■ height-adjustable drawbar
■ aluminium drive-on ramps 2650 mm / 325 mm, load capacity 2800 kg in pair
■ 1 m mesh extension, height alternatives possible
■ swinging rear board
